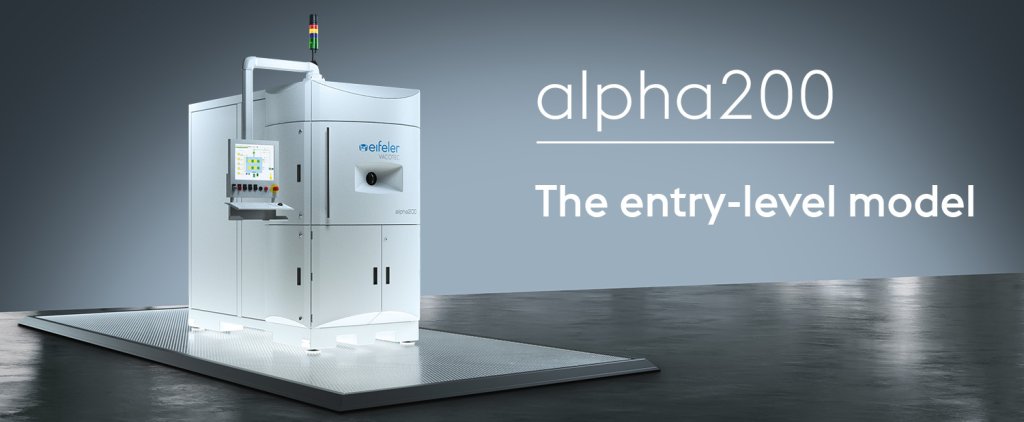

The entry-level model
alpha200
Home > PVD coating systems > PVD service portfolio > Products > alpha200
The alpha200 PVD coating system enables you to get the shortest reaction times. That makes it ideal for smaller coating productions as well as for research and development. The R&D departments of tool manufacturers or universities especially appreciate it as a laboratory and R&D system for fast results. In high-volume production areas, it is often added as a peak capacity support system.
- High plasma density
- High flexibility and productivity
- Dual evaporators for high production stability and access to mixed-material coatings
- Access to combination coating systems
- Simple loading and intuitive operation
- Easy to maintain
- Low operating costs
- Small footprint for easy integration in factory floor plan
- Access to all sides for easy maintenance and service
- Usable volume: Ø 350 mm × 325 mm
- Load: max. 250 kg
- Coating chamber (L×W×H): 580 × 600 × 580 mm
- Dead weight: 2,600 kg
- Distributed load: 1,075 kg/m2
- Bias: 10 kW/max. 1,000 V DC/pulsed DC
- Evaporator sources: 8 pcs. with ecach max. 125 A
- Batches per day: typically 4 – 5 batches
- Exemplary batch Endmills (Ø 10 × 70 mm): 144 pcs. per batch
- Exemplary batch Hobs (Ø 100 × 150 mm): 8 pcs. per batch
- Turntables: different numbers of satellites available
- TiN
- TiCN
- TIGRAL®
- CrCN
- EXXTRAL®-plus
- SISTRAL®
- VARIANTIC®
- and many more
